The Epson TM 200 receipt printer is available as an optional accessory for the customer terminal. -

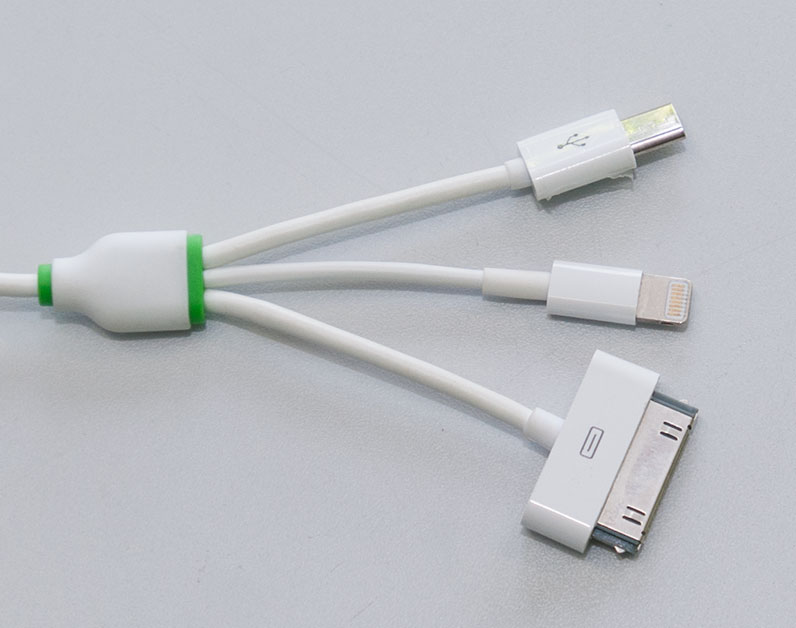

The latest smartphones can also be connected to the terminal via a cable.

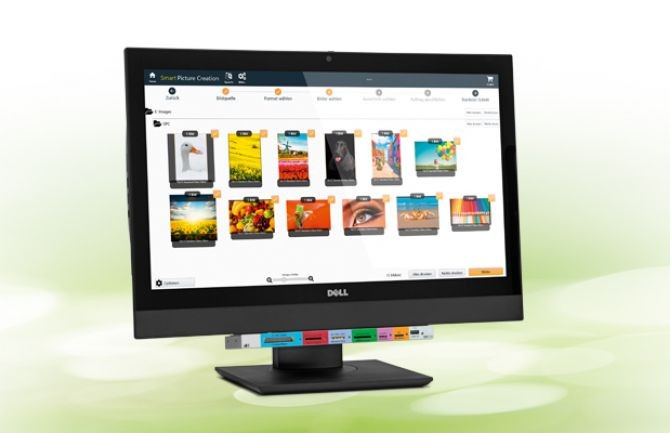

Customer Terminal
The kiosk – the centrepiece of photo business in your store
- Easy, intuitive operation thanks to the same user interface as in online and app versions.
- Shows all your photo products: photos, greeting cards, photo books and much more.
- Set up and update your range of photo products, including prices, with the Smart Picture Lab order manager software.
- State-of-the-art, high-performance kiosk system: Intel Quad Core i7 processor/3.6 GHz, 8 GB RAM, 2 GB graphics card, Windows 10 Pro*, USB 3.0 data interface, 23 inch multi-touch monitor, integrated Bluetooth 4.0 adapter, connection to standard smartphones*2 using multi-cable; receipt printer optional.
Features
| Type/Model Processor* |
CT-DELL; Computer Dell Optiplex 7450 AIO Touch; Intel Core i7-7700 (Quad Core, 3.6 GHz, 8 MB) |
|---|---|
| Main memory Hard drive* |
8 GB (1x8 GB) 2400 MHz DDR4; 500 GB hard drive (S-ATA III, 7,200 rpm) |
| Optical drive Wireless* |
Slimline DVD+/-RW drive (8x); Intel Dual Band Wireless 8260 (802.11ac) + Bluetooth 4.2 |
| Monitor Touch screen* |
Dell AIO - 23 inch Capacitive (system-compatible with currently available Noritsu devices) |
| Operating system | Windows 10 Pro 64Bit English (can be switched to other languages on request) |
| Software Kiosk | “High Photo Transfer” (“HPT”) and “Photo&Book” |
| Device connection | USB 2.0 and USB 3.0 connections, network connection on CT |
| Input** Via card reader bar AFT DR 7.3 media drive (USB 3.0) underneath the monitor and using adapter cable, e.g. for smart phones |
Digital image data in file formats JPEG, TIFF, PNG, RAW as DNG and S/W, CN and CU material and reflective materials after digitizing using optional scanners, with additional connection of manufacturer and model-dependent mobile terminal equipment by cable or Bluetooth |
| Image output | Via Noritsu minilabs, inkjet devices, IP-64 thermal printer |
| Footprint and weight | Net floor space approx. 0.5 m²; approx. 6 kg |
| Power connection | At 230 V AC socket with 3-wire AC power cable fitted with cold-device plug |
| System-compatible accessories (optional) | Receipt printer TM-200 (USB) |
| Additionally | Easy to operate by consumers; network-enabled at Noritsu systems |
Comments on *
Models and components may be replaced at any time by Mümken Sales GmbH – even without previous notification. Detailed, binding technical specifications as per device specifications and current, device-specific device manual. Devices may vary depending on country and equipment and may deviate in individual points from the data specified here.
Comments on **
Detailed, binding compatibility and capacity specifications of the storage media as per device specifications and current, device-specific device manual.
