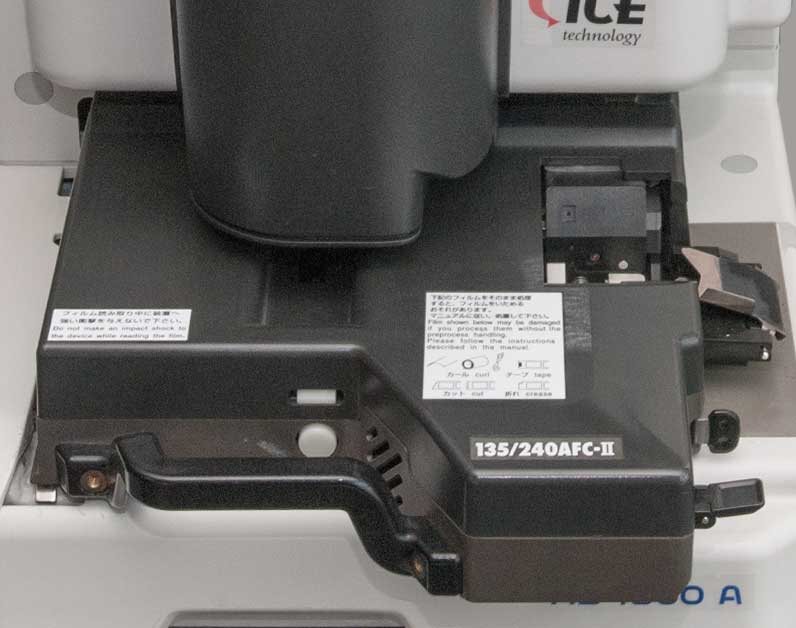

• Noritsu HS-1800 film scanner changeable carrier
    With the most powerful HS-1800, negatives/slides of different formats can be read by changing the carrier.

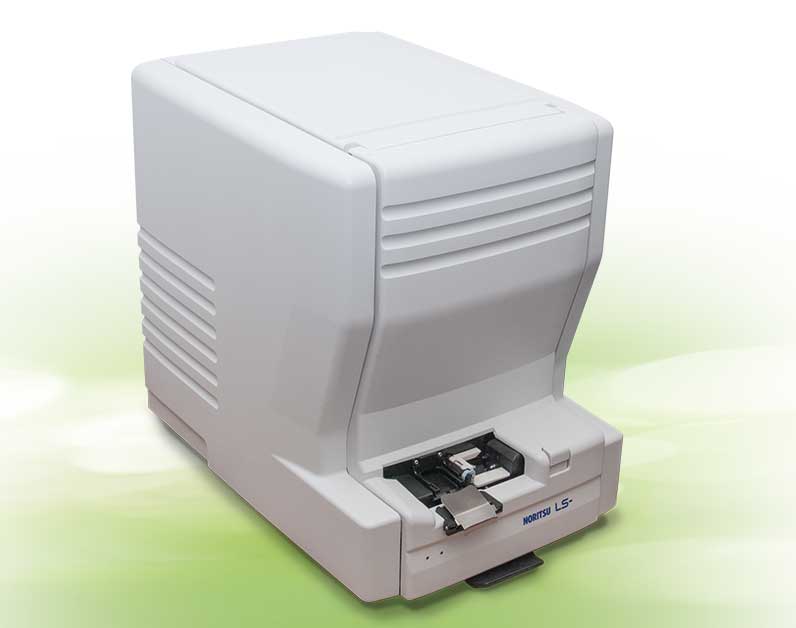

  • Noritsu LS-600/LS-1100 film scanner
    The LS-1100 is capable of scanning both standard 135 and APS film types.

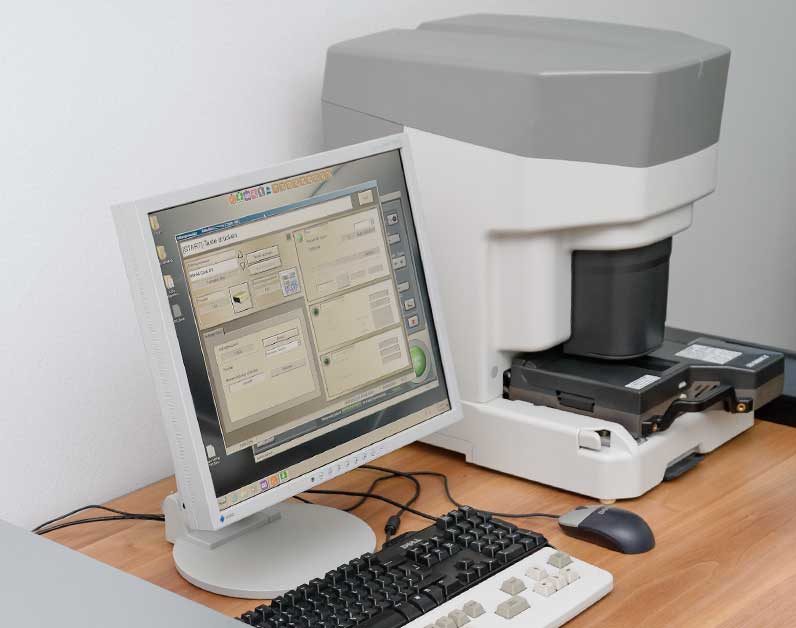

  • Noritsu HS-1800 film scanner workstation
    Typical digitization workstation with HS-1800 film scanner

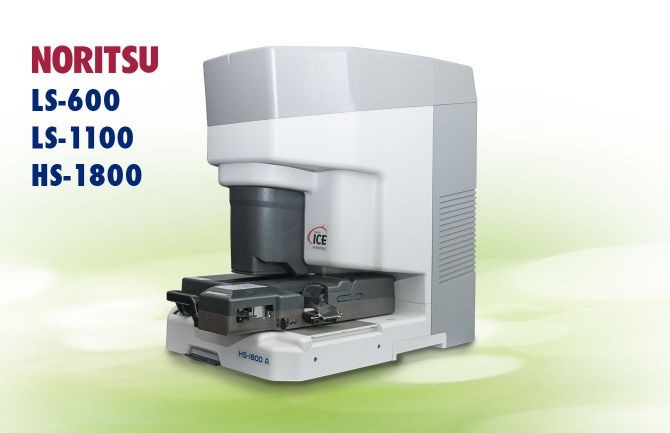

Noritsu Film Scanner

Professional and with high resolution

As always, there are still customers – both consumers and professionals – who visit a specialist photo shop with film material to have printed images or value-added image products made from it. There are three Noritsu film scanners for the digitalization of colour and black/white negatives, and for reversal film. The devices are designed for professional usage and for digitalization of large quantities of film. Model differences include scanning capacity as well as the film formats that can be read in.

Features

Types/Models LS-600

LS-1100

HS-1800
Operating System Windows 7 Professional, German/English (64 Bit OS)
Software EZ Controller
Device connection USB 2.0 connections, network connection on the EZ Controller PC
Input Specific to the scanner model
Colour and black/white negatives as well as slides in formats:

LS-600:
KB negative, framed KB slides 24 x 36 mm

LS 1100:
KB negative, framed slides 24 x 36 mm; IX240 negative (APS)

HS-1800 with replaceable negative carriers (optional):
Carrier 135/240 AFC II: Neg./slide/SW 135, IX240;
Carrier 120 AFC II: Roll film negatives and slides in formats: 4.5 x 6 cm, 6 x 6 cm, 6 x 7 cm, 6 x 9 cm;
Carrier 135 MMC II: framed –KB slides 24 x 36 mm
Resolution LS-600, LS-1100:
1002 x 1512, 2000 x 3000, 4000 x 6000 pixels

LS 1100:
1002 x 1512 pixels

HS-1800:
1037 x 1565, 2000 x 3000, 4492 x 6774 pixels
Capacity LS-600:
Approx. 600 negatives/h at 1002 x 1512 pixels

LS-1100:
Approx. 1,200 negatives/h at 1002 x 1565 pixels

HS-1800 (when using a high-speed PC):
Up to 2,200 negatives/h at 1037 x 1512 pixels
Image data transfer To digital Noritsu minilabs (from model QSS-3501 Plus, QSS-3701), and Noritsu inkjet devices (from model D701/D703)
Weight LS-600 approx. 18.4 kg,
LS-1100 approx. 18.4 kg,
HS-1800 approx. 18.6 kg
Power connection At 230 V AC socket with 3-wire AC power cable fitted with cold-device plug
System-compatible accessories (optional) HS-1800 negative carriers:
A) 135/240 AFC II for neg./slide/SW 135, IX240;
B) 120 AFC II for neg./slide/SW 6x4.5, 6x6, 6x7, 6x9 cm
C) 135/240 MMC II for glassless framed slides, in 50x50 mm slide frames with frame thicknesses from 1.0 mm to 3.2 mm
Additionally Easy operation; network-enabled in Noritsu systems;
Digital ICE for removal of dust and scratches

Comments

Detailed, binding technical specifications as per device specifications and current, device-specific device manual. Devices may vary depending on country and equipment, and may deviate in individual points from the data specified here.
