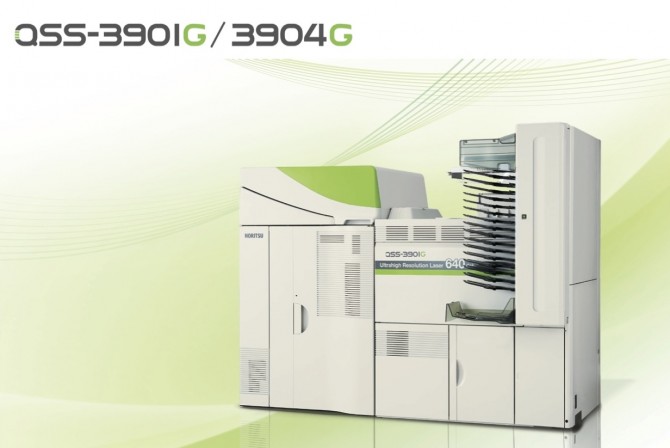

Noritsu QSS-3901G QSS-3904G
The most modern in industry
The Noritsu QSS-39G Series is without doubt superlative among the photochemical minilabs. It is not just fast and modern, as proven by its processing output of up to 1480 and 2120 images per hour in 10 x 15 cm format. It is also the only wet lab that processes images with direct modulation laser diodes at fixed 640 dpi. This makes the finest nuances of the image visible, and achieves exceptional image quality on photochemical material with the aid of the AccuSmart image enhancement software. Fitted with all the added features typical of Noritsu, such as expandability by fitting with three or four paper magazines, the device considerably facilitates the work of the processor during image production. The QSS-39G Series has the added capability of being able to run thin paper (135-160 micm) for printing even more photo products such as postcards and covers for hardcover photo albums.
Features
|
Type |
Photochemical RA-4 minilab device for volume printing of images from paper rolls |
|
Input* |
Digital image data in file formats JPEG, TIFF, PNG, RAW as DNG and S/W, CN and CU material and reflective materials after digitizing using optional scanners |
|
Paper widths |
From 82.5 to 305 mm |
|
Processing formats (nominal sizes)** |
Single-sided from 9 x 13 cm to 30 x 91 cm |
|
Maximum output format (nominal size)** |
Panorama print 30 x 91 cm |
|
Processing capacity (nominal output)** |
1480 (QSS-3901G) and 2120 (QSS-3904G) pictures /h 10 x 15 cm |
|
Exposure system |
Direct modulation laser image setter |
|
Resolution fixed |
640 dpi |
|
Special features |
Paper widths up to 305 mm (12 inches), standard delivery with two trays for paper rolls; standard delivery with 14x sorter with visual display of job interruption |
|
Space requirements and empty weight of device |
Net floor space approx. 2.15 m²; working area with movement zone at least 3.95 m² |
|
Power connection and output |
1-phase 220 V max current / 31 A, available 3-phase connection |
|
System-compatible accessories (optional) |
Noritsu Film Scanner models LS-600, LS-1100, HS-1800; “Smart Picture Creation” customer terminal and retailer/customer order processing software, triple or quad paper magazine system |
|
Additionally |
Easy to operate and network-enabled using EZ Controller and an up-to-date control computer (workstation) |
Comments on *
Input at EZ Controller or system-compatible HPT terminal using currently available digital storage media (detailed, binding compatibility and capacity specifications of storage media as per device specifications and current, device-specific device manual)
Comments on **
Detailed, binding processing format and performance specifications as per device specifications and current, device-specific device manual.
Devices may vary depending on country and equipment, and may deviate in individual points from the data specified here.
