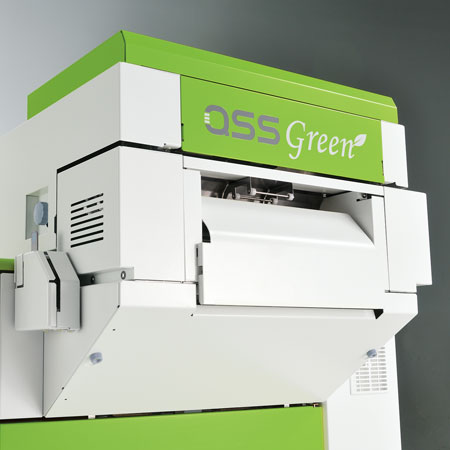

Automatic duplex unit -

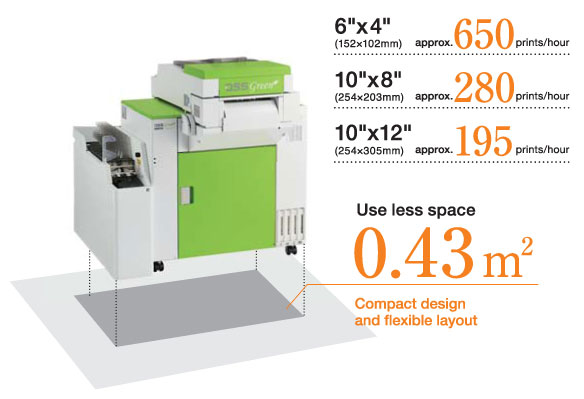

Low space requirements -

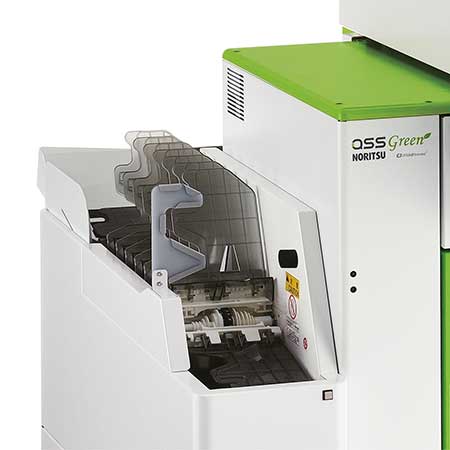

Sorter unit
Noritsu QSS Green
The customer magnet
Based on the tried-and-tested D703 and combined with automatic sheet-turning device D502, duplex printing of sheets, for instance for photo books and calendars, is now even easier and more convenient. In contrast to the D703, which is still available, the operator of a QSS Green can produce image products either at the standard resolution of 720 x 720 dpi or at a higher resolution of 1440 x 1440 dpi. To print outstanding panorama images in the format 254 x 1757 mm, the maximum step length of the new device has been expanded to a very impressive 1.757 metres. The QSS Green also scores with its variable suction plate. It ensures exact flatness of the paper when printing, and automatically maintains the optimum distance to the two print heads. This allows thicker paper to be used, such as that preferred for greeting cards. With the QSS Green, the self-processor can process not only JPEG image data, but also RAW image data preferred by professionals and ambitious amateur photographers.
Features
| Type | Inkjet duplex device for rolls and sheets for volume printing of images and for value-added image production; with automatic feeder and automatic sheet-turning device for duplex printing |
|---|---|
| Input* | Digital image data in the file formats JPEG, TIFF, PNG, RAW as DNG and S/W, CN and CU material and reflective materials after digitizing using optional scanners |
| Paper widths Paper step lengths |
102, 127, 152, 203 and 254 mm from 8.9 cm to 175.7 cm |
| Processing formats (nominal sizes)** | For single-sided printing from 9 x 13 cm to 25.4 x 175.7 cm For duplex printing from 10 x 20 cm to A4 (21.0 x 29.7 cm) Cover sheets up to 25.4 x 62.0 cm |
| Maximum output format (nominal size)** | Panorama printing 25.4 x 175.7 cm |
| Processing capacity (nominal output)** | 650 pictures/h 10 x 15 cm at 720 dpi 195 pictures/h 25 x 30 cm at 720 dpi |
| Printing system | Piezo-inkjet technology; 4 colours with dot size manipulation (DSM) |
| Resolution (selectable) | 720 x 720 dpi or 1440 x 1440 dpi |
| Special features | Paper widths up to 254 mm (10 inch), auto-duplex unit for sheets, paper deck with easy-to-clean absorbers; standard unit with 8x sorter and visual display of job interruption |
| Space requirements and empty weight of device | Net floor space approx. 0.43 m²; working area with movement zone at least 2.5 m² Weight without paper approx. 181 kg |
| Power connection and output | 230 V AC socket outlet / 16 A / power approx. 1,440 VA |
| System-compatible accessories (optional) | Noritsu Film Scanner models LS-600, LS-1100, HS-1800; RIP*-PC (Raster Image Processor); “High Photo Transfer” customer terminal and retailer/customer order processing software |
| Additionally | Easy operation with EZ Controller, an up-to-date control computer (workstation); network-enabled via RIP PC |
Comments on *
Input at EZ Controller or system-compatible HPT terminal using currently available digital storage media (detailed, binding compatibility and capacity specifications of storage media as per device specifications and current, device-specific device manual)
Comments on **
Detailed, binding processing format and performance specifications as per device specifications and current, device-specific device manual.
Devices may vary depending on country and equipment, and may deviate in individual points from the data specified here.
