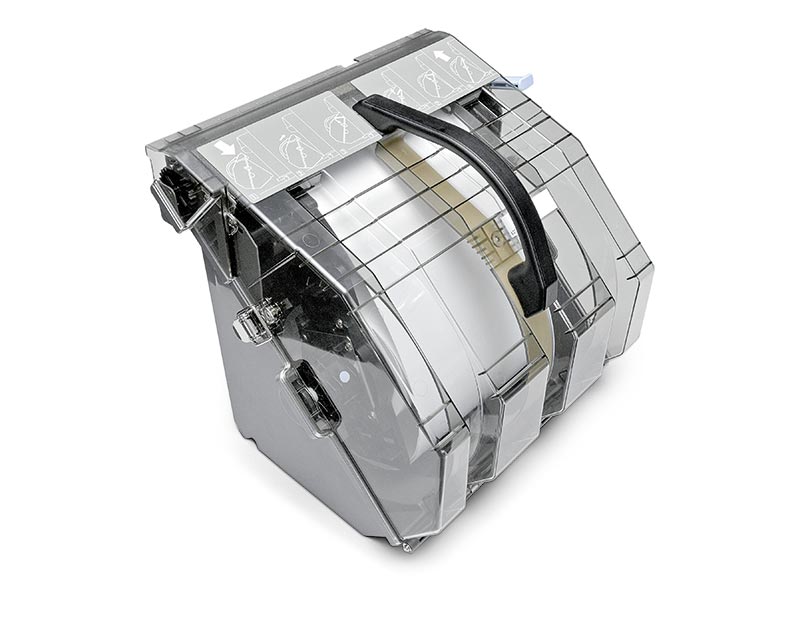

• Noritsu D705 dual tray
    The dual tray for paper rolls is docked to the front of the device.

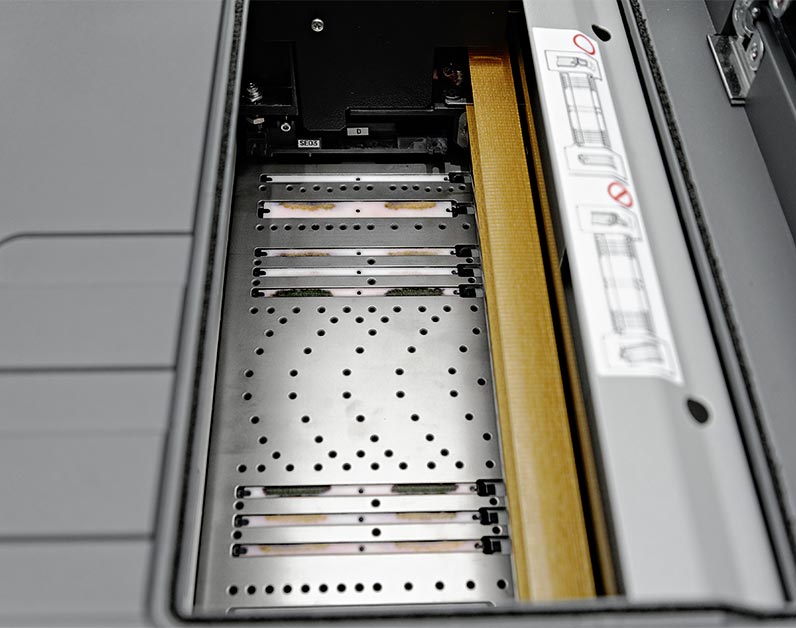

  • Noritsu D705 paper guide
    The paper guide plate is equipped with flexible absorbers for easy cleaning.

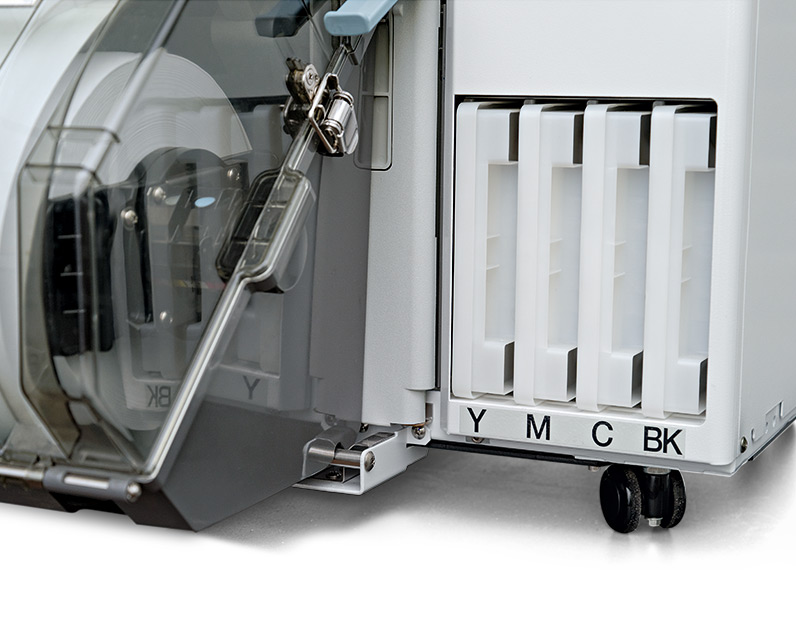

  • Noritsu D705 ink cartriges
    The easily accessible ink cartridges can also be changed during operation.

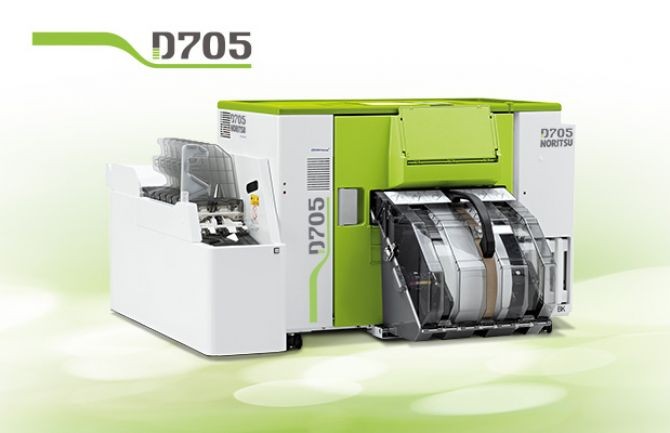

Noritsu D705 Green

For entry-level and new users

Just like the current Noritsu dry labs, the D705 can print on either one side or both sides. It is therefore suitable for both pure image production and for the production of individual value-added photo products. The model produces images in various formats from 9 x 9 cm to 25 x 30 cm and up to 25 x 61 cm, and optionally even in the panorama format 25 x 171 cm. It can even output A4 prints on sheets. Using a second paper magazine for paper rolls, it allows you to conveniently and efficiently structure your image products. Placing one D705 on top of another and linking them allows pictures to be produced at twice the volume – up to 1,300 prints per hour in the 10 x 15 cm format. Paper sheets fed into the single-sheet feeder are used for duplex printing.

Features

Type Inkjet duplex device for rolls and sheets for volume printing of images and for value-added image production
Input* Digital image data in the file formats JPEG, TIFF, PNG, RAW as DNG and S/W, CN and CU material and reflective materials after digitizing using optional scanners
Paper widths
Paper step lengths		 102, 127, 152, 203 and 254 mm
from 8.9 cm to 175.7 cm (using an optional RIP PC)
Processing formats (nominal sizes)** For single-sided printing from 9 x 13 cm to 25.4 x 174.0 cm *1
For duplex printing from 10 x 20 cm to A4 (21.0 x 29.7 cm)
Maximum output format (nominal size)** Panorama print 25.4 x 174.0 cm *1
Processing capacity (nominal output)** 650 pictures/h 10 x 15 cm at 720 dpi
195 pictures/h 25 x 30 cm at 720 dpi
Printing system Piezo-inkjet technology; 4 colours with dot size manipulation (DSM)
Resolution (selectable) 720 x 720 dpi
Special features Paper widths up to 254 mm (10 inch), standard delivery with an exterior tray and an internal spindle for paper rolls; paper deck with easy-to-clean absorbers; optional 8x sorter with visual display of job interruption; duplex print from paper stack feeder and with removed back printer
Space requirements and empty weight of device Net floor space approx. 0.35 m²; working area with movement zone at least 2.5 m²
Weight without paper approx. 100 kg
Power connection and output 230 V AC socket outlet / 16 A
System-compatible accessories (optional) Noritsu Film Scanner models LS-600, LS-1100, HS-1800; RIP*-PC (Raster Image Processor); “High Photo Transfer” customer terminal and retailer/customer order processing software
Other Easy operation with EZ Controller, an up-to-date control computer (workstation); network-enabled via RIP PC

Comments on *

Input at EZ Controller or system-compatible HPT terminal using currently available digital storage media (detailed, binding compatibility and capacity specifications of storage media as per device specifications and current, device-specific device manual)

Comments on **

Detailed, binding processing format and performance specifications as per device specifications and current, device-specific device manual.
Devices may vary depending on country and equipment and may deviate in individual points from the data specified here.

Comment on *1

Max. step length 175.7 cm using an optional RIP-PC, otherwise max. step length 60 cm
